MEASUREMENT AND COMPARISON OF THE DYNAMIC CHARACTERISTIC OF MOTORS
(Measurement of the rotational speed of a motor 5)

Last time the dynamic characteristic of a motor was measured from a sound of operation. The rotation sound was measured for the motor of the slot racing (MABUCHI MOTOR FC-130S, DC12V). This time, other motors are also measured. The purpose of this experiment is a measurement of different motors operated by a constant voltage of 12.27V. For comparison, all data was acquired on the same conditions.


Date: 7:59, 27 Sep. 2002
Place: Apartment (Tokyo, Japan)
Microphone: SONY ECM-MS957
Personal computer: DELL INSPIRON 5000e
OS: Windows 2000 Professional
Software for reproduction: Windows Media Player
Software for Measurement: Realtime Analyzer and Sound Analyzer of DSSF3

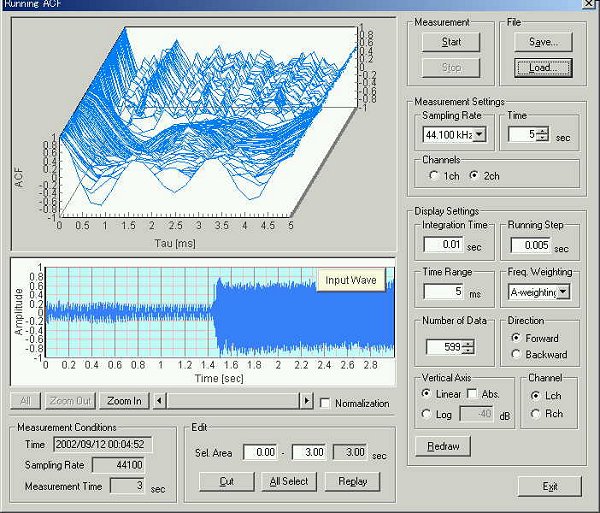

This is the running ACF (autocorrelation function) measurement of R16 motor.

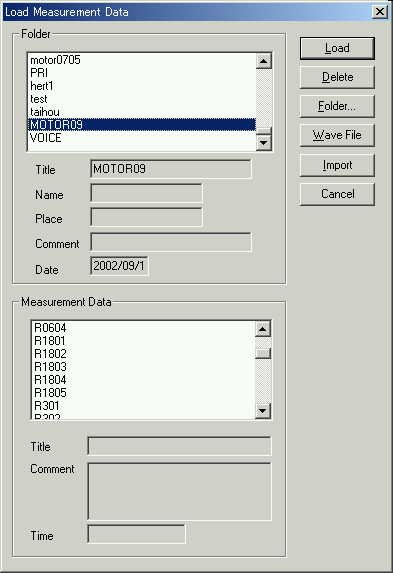

This is the file management menu of the running ACF. Measured data is displayed in the list. See the previous report for how to start the measurement.

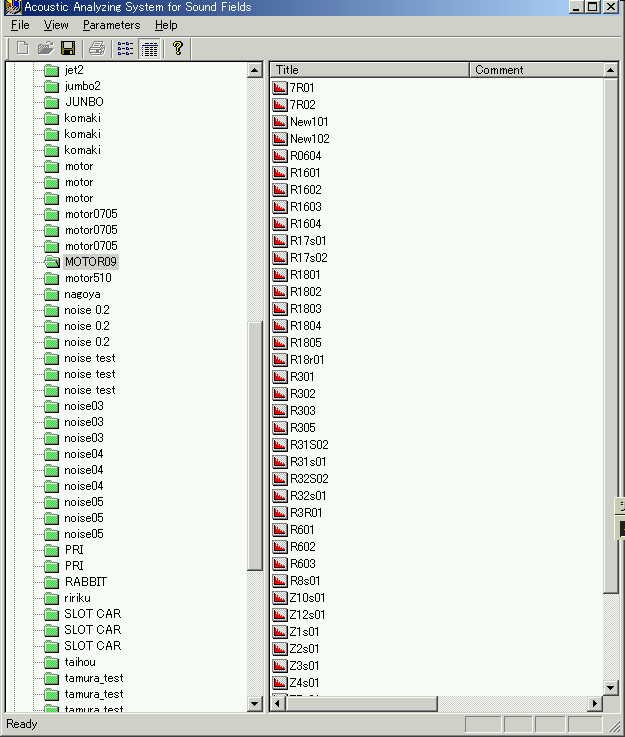

This is the main window of the sound analyzer.

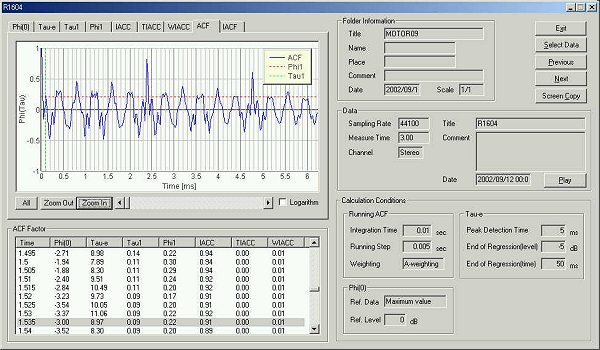

Data was analyzed. This is the ACF graph of R16 at 110 ms after it starts rotation. The fundamental frequency is seen at 2.38 ms.

This is the ACF graph of R18 at 110 ms after it starts rotation. The fundamental frequency is seen at 2.43 ms.

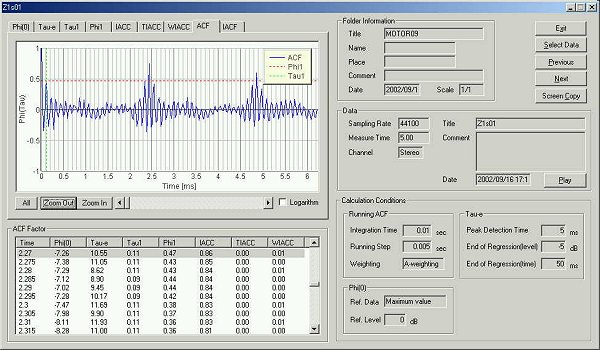

This is the ACF graph of Z1 at 110 ms after it starts rotation. The fundamental frequency is seen at 2.45 ms.

After connecting with a power supply, the rotational speed at 50 ms, 80 ms, and 110 ms, and the maximum number of rotations were estimated from the maximum peak of the autocorrelation function. Measurement time of 50 ms, 80 ms, and 110 ms are the time required until the number of rotations of a motor reaches to about 50 percent, 80 percent, and 90 percent of the maximum rotation. The maximum number of rotation is the important feature of a motor performance. The high maximum number of rotation is the conditions of outstanding motors. However, I think that the time required until it reaches the maximum rotation is also important.

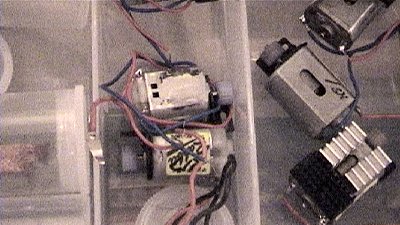

The measurement result of 20 motors was summarized in the table.

t1: fundamental period, rpm: rotational speed, rpm = 1000 / t1 * 60
    50 ms

t1

80 ms

t1

80 ms

rpm

110 ms

t1

110 ms

rpm

Max

t1

Max

rpm

Lap Time
1 R6 2.8 2.45 24490 2.3 26087 2.21 27149 7.264 s
2 R16 3.5 2.55 23529 2.38 25210 2.26 26549 7.394 s
3 R18 3.4 2.6 23077 2.43 24691 2.32 25862 7.4 s
4 Z1 5.7 2.51 23904 2.45 24490 2.38 25210
5 NEW2 2.9 2.55 23529 2.45 24490 2.3 26087 7.41 s
6 R31 3 2.6 23077 2.45 24490 2.39 25105 7.6 s
7 Z12 5.5 2.6 23077 2.48 24194 2.39 25105
8 Z6 3.2 2.6 23077 2.5 24000 2.38 25210
9 Z8 2.9 2.6 23077 2.5 24000 2.42 24793
10 Z10 3.2 2.62 22901 2.5 24000 2.38 25210
11 Z4 3.6 2.7 22222 2.5 24000 2.28 26316
12 Z3 3.3 2.7 22222 2.55 23529 2.45 24490
13 R3 3.45 2.67 22472 2.59 23166 2.5 24000
14 Z2 3 2.72 22059 2.6 23077 2.5 24000
15 R17 4.5 2.8 21429 2.6 23077 2.39 25105
16 R32 3.35 2.8 21429 2.6 23077 2.55 23529
17 NEW1 4 3 20000 2.6 23077 2.38 25210 7.56 s
18 #7 4.1 2.8 21429 2.7 22222 2.6 23077
19 R8 5.4 3.8 15789 2.78 21583 2.44 24590
20 Z5 5.7 2.9 20690 3.1 19355 2.28 26316

The measurement was performed for the motors of which maximum rotation were good.

Lap time shown in the table is the best record marked at the recent race. As the measurement has shown, R6 and R16 have better performances than others.



In this report, the running ACF analysis of the operation sound of motor was made. ACF is the time domain analysis that is capable of detecting the periodic events better than the conventional frequency analysis. This is the reason why we apply this method to the analysis of sounds emitted from motor, car engine, and other equipments and machinery.

September 2002 by Masatsugu Sakurai
