Measurement equipment

2004/02/26 updated

For the measurement of aircraft noise or car engine noise, we use the digital video camera with external stereo microphones. Sound is recorded by16bit/44kHz sampling with motion pictures. Then, the audio data is imported to the computer and analyzed by the RA (Realtime Analyzer). I introduce here examples of the equipment that is reasonably available. Those who would try to the similar measurement can use them.

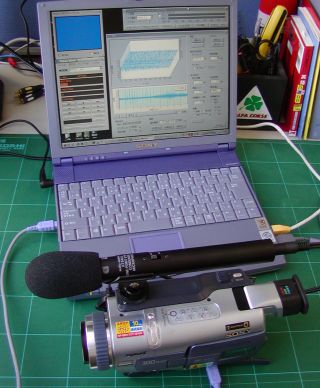

Digital handycum and notebook PC (Sony vaio) is connected by iLINK cable. The vaio software Dvgate can control the video deck.

Set the input device of the Realtime Analyzer as "wave" to get the internal signal in the computer. Replay the recorded movie and start the ACF measurement.

The input sound level is simply adjusted by the sound level meter's value. For the precise measurement of the sound pressure level, you should calibrate the microphone before the measurement. See RA's operation guide for how to calibrate the microphone.

Video camera is very convenient to record the situation of the measurement.

For the sound measurement, it is important to use a proper microphone and amplifier. Preparation of the equipments and the software is also important. It may seem difficult for untrained users, but don't worry. Our measurement software, DSSF3, is equipped with a number of support functions for performing the correct measurement easily. Anyone can measure sound correctly by following the procedure written in the operation guide of the program manual.

I usually use recording equipments such as MD and DAT recorder with automatic recording mode. When I need a picture, I use Sony digital video camera which is equipped with the 16-bit 48 kHz sampling stereo sound recorder. I pay a special attention to the recording level, because the quality of the  measurement is decided by the dynamic ranges of the microphone and the microphone amplifier.

The quality of the equipments (especially the microphone) greatly affects the measurement results. If available, you should use the highest-class microphone. But such microphones are very expensive. Comparatively cheap and excellent microphones are also available.

See also Additional devices for sound measurement for more information.

Microphone

Audio-technica AT9450

Element: Stereo etectret condenser
Polar pattern: Unidirectional
Frequency response: 50-18,000Hz
Sensitivity (0dB=1V/Pa,1kHz):-45dB
Impedance: 600Ω
Battery Current: 1mA
Battery Type: SUM-3 x 1
Battery life: 1,000 h

Dimensions:φ22x203mm
Weight: 80g
Price: JPY 7,800



Digital Video Camera

The audio capability is important. If it does not allow 16 bits recording, the dynamic range is insufficient and it can not be recommended for the sound measurement. The products listed below satisfy this specification.

SONY DCR-PC3
PCM digital stereo recording 12bit 32kHz / 16bit 48kHz
PCM digital stereo play 12bit mode / 16bit mode
SONY DCR-TRV300
Speech mode should be set at 16bit.

PC

We usually use SONY VAIO and DELL INSPIRON, but of course you can use other PC if it can control the video camera.

SONY VAIO PCG-R505R/DK
Microsoft Windows 2000 Professional
Intel SpeedStep Mobile Pentium III processor 850MHz
RAM: SDRAM256MB
HDD: 20GB (Ultra ATA)
Ext: USBx2, i.LINK (IEEE1394) S400 x 1
LAN: (100BASE-TX / 10BASE-T) x 1
SONY VAIO PCG-Z505GR/K
Microsoft Windows 2000 Professional
Inetl SpeedStep Mobile Pentium III processor 650MHz
RAM: SDRAM128MB
HDD: 12GB(Ultra ATA)
Ext: USBx2, i.LINK (IEEE1394) S400 x 1
LAN: (100BASE-TX / 10BASE-T) x 1

April 2003 by Masatsugu Sakurai
