RAD / Realtime Analyzer DSS

Quality acoustic measurement and analysis software. Simple and easy to use. For measuring room acoustics, professional analysis of sound and vibration in your computer. RAD is a valuable tool for audiophiles, audio engineers, and educational institutions.
Read user reviews

Function outline

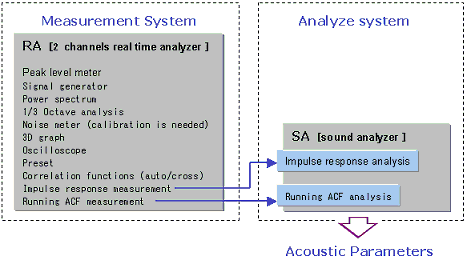

RAD consists of two programs. Realtime Analyzer (RA), and Sound Analyzer (SA). Note that the light version of RA is RAL.

Note: RAD has been upgraded to version 2 in Feb. 2003. The previous version of DSSF3 is the base of RA series (RAL, RAD, and RAE). See the full function list for comparison with other products.

RA [2 channels real time analyzer] is a virtual measurement instrument, including signal generator, real time frequency analyzer, and oscilloscope. In addition, data acquisition modules for Impulse response and Running ACF analysis are included.

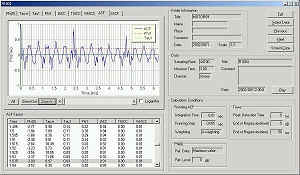

SA [sound analyzer] performs multidimensional sound analysis by use of the various acoustic parameters. Room acoustics parameters such as RT (reverberation time) and IACC (spaciousness) are calculated from the impulse response. In addition to the conventional FFT analysis, a newly developed ACF / CCF is used for analyzing detailed acoustic qualities and spatial qualities of sound.

1/3 octave band display
All the functions of RAL / Realtime Analyzer Light are included. Peak level meter, signal generator, oscilloscope, spectrum analyzer, 1/3 octave band,  waterfall, and correlation meter.

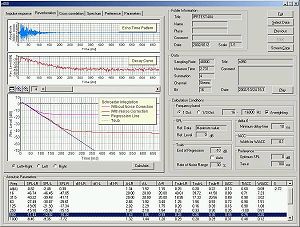

Reverberation time is analyzed quickly and accurately based on the impulse response.

Sound recorder / player is available. WAV file import / export,  waveform editing are supported.

Recorded sound is analyzed in detail. Time history of SPL, fundamental frequency, pitch strength, angle of incidence, etc.

Application

Covered fields are audio measurement, testing, adjustment, room acoustics, electronic measurement, acoustic analysis of noise, human voice, musical instrument, and so. We prepare a lot of application notes for using RAL. You can start the same measurement by your own laptop.  Introduction to Sound Measurement


Greg's Review:
Realtime analyzer RAD consists of two separate programs; one for recording and measuring sound, called the Realtime analyzer (RA) and a program for analyzing the recorded data, the sound analyzer (SA). Both of these programs come from the excellent acoustic research system DSSF3. Being able to purchase the components separately in this way is a great idea as the full DSSF3 system is rather expensive, and you can select the components that most suit your needs. The Sound Analyzer tool is able to analyze the data produced by other programs in the system, such as the Realtime Analyzer and the Environmental Noise Measurement system. It exhibits the same excellence in both technical accuracy and value for money that is present in every other component. One of the things which really sets this system apart from the others is the huge amount of online support you get access to. The online help manuals not only contains complete instructions on how to use all the features included with the programs (including screen shots), but they also includes technical information (such as graphs and equations) explaining the theory behind it all. The author must have an extremely comprehensive knowledge of this subject area to both write such software and the vast amount of documentation which explains it. If you need a set of tools for recording, measuring and analyzing sound, but don’t want to spend thousands of dollars on the next best thing then this really is the program for you.

Overall rating: - Excellent!



If you have any troubles or questions in using the software, please let us know anytime. We will be pleased to support your work. We also welcome your comments and requests to the software. We will make use of your feedback to improve our products.

Install Guide
Application notes
RA Realtime Analyzer program manual
SA Sound Analyzer program manual
WHAT PEOPLE ARE SAYING
Questions and Answers


Get free trial: During a trial period of 3 days, all functions of RAD can be used without limitation.
PcAudioRADEMe.exe / 5.73MB
Windows95/98/Me/2000/NT4.0/XP
This software product was tested in the Softpedia labs on: 04 July 2005 and found to be completely clean of adware/spyware components.

Buy license : We accept an order by credit card, PayPal, or Bank transfer. Please choose the most convenient method for you. If you need an invoice, a receipt and so on, we will issue them upon the request. Go to YMEC STORE order page.
